MGDxx-35 Series
35 Watt DC-DC Converter
Features:

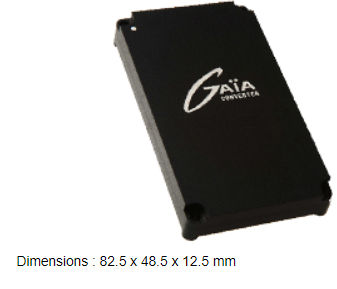

• Standard 3"x2" package
• Soft start
• Single, Bi or Triple outputs
• No load to full load operation
• Nominal power up to 35W
• Galvanic isolation 1 500 VDC
• Switching frequency 500 KHz
• Protections : input undervoltage lockout, output short circuit, output overvoltage
• Trim adjustment 95% to 105%
• External synchronization range 550 to 600 KHz
• No optocoupler for high reliability
