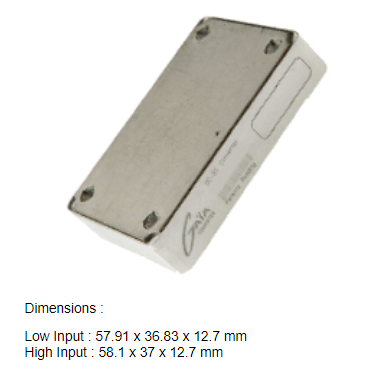

MGDSx-75 Series
75 Watt DC-DC Converter
Features:
• Standard quarter brick package
• Soft start
• Single output
• No load to full load operation
• Nominal power up to 75W
• Galvanic isolation 1 500 VDC (2 200 Vdc for S input)
• Switching frequency 420 KHz
• Protections input undervoltage lockout, output current limitation, output overvoltage, over temperature
• External synchronization range 80% to 110%
• No optocoupler for high reliability
