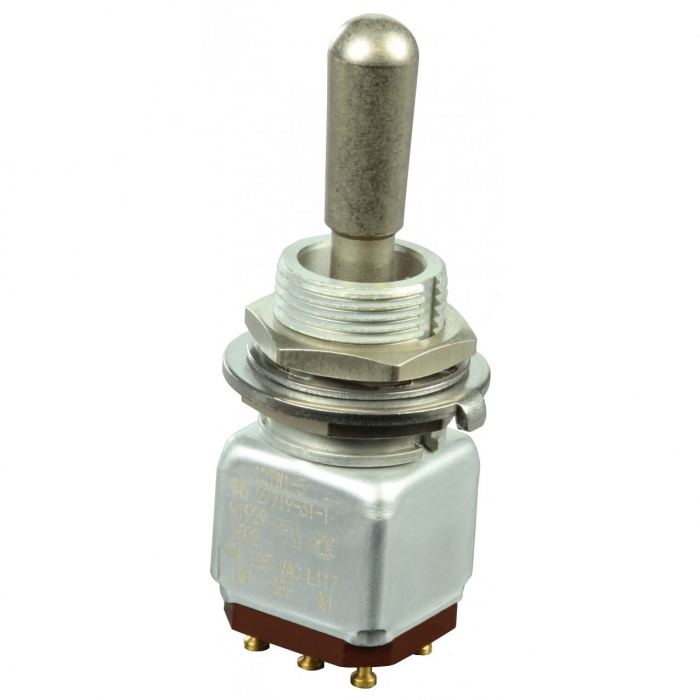

MS27719-31 Toggle Switch NSN: 5930-00-406-9902
Switch
| Parça Numarası: | MS27719-31-1 |
| RoHS: | Yes |
| Supplier Standard Pack: | 1 |
| Type: | N/A |
| Maximum AC Voltage Rating: | 125@(CSA/UL) V |
| Family: | MS27719 |
| Contact Material: | Fine Silver |
| Actuator Color: | N/A |
| Maximum DC Voltage Rating: | 30 V |
| Terminal Type: | Solder |
| Seal Description: | Lever |
| Actuator Material: | N/A |
| Pole Throw Configuration: | DPDT |
| Mechanical Life: | N/A |
| Packaging: | N/A |
| Contact Plating: | N/A |
| Switch Configuration: | (ON) OFF ON |
| Bushing Type: | Threaded |
| Electrical Life: | N/A |
| Body Orientation: | Straight |
| Actuator Length: | 17.3 mm |
| Housing Material: | N/A |
| Product Weight: | N/A |
| Base Material: | N/A |
| Mounting: | Panel Mount with Threads |
| Maximum Contact Resistance: | N/A |
| Seal Location: | Actuator/Bushing |
| Actuator Style: | Round Lever |
| Dielectric Strength: | N/A |
| Minimum Insulation Resistance: | N/A |
| Thread Size: | 15/32-32 |
| Operating Temperature: | -65 to 71 °C |
| Contact Rating @ Voltage: | 5 A |
| Dimension: | 14.7 x 13.7 x 48 mm |
