AP-1-1RC-72F-103 Airpax Circuit Breaker NSN: 5925-01-489-2791
Switch
Circuit Breaker Hydraulic Magnetic 1Pole 10A
| Feature | Value |
| BODY STYLE | SINGLE POLE TYPE |
| BUSHING LENGTH | 0.380 INCHES MAXIMUM |
| BODY LENGTH | 1.562 INCHES MAXIMUM |
| BODY WIDTH | 1.281 INCHES MAXIMUM |
| CASE MATERIAL | METAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.875 INCHES NOMINAL |
| SWITCH CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.780 INCHES MAXIMUM |
| POLE QUANTITY | 1 |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING W/PANEL SEAL |
| STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| THREAD QUANTITY PER INCH | 32 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 10.0 AMPERES AC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 240.0 AC SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 1000.0 AC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | MAGNETIC SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 135.0 SINGLE LOCATION |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 TOGGLE |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE ONE |

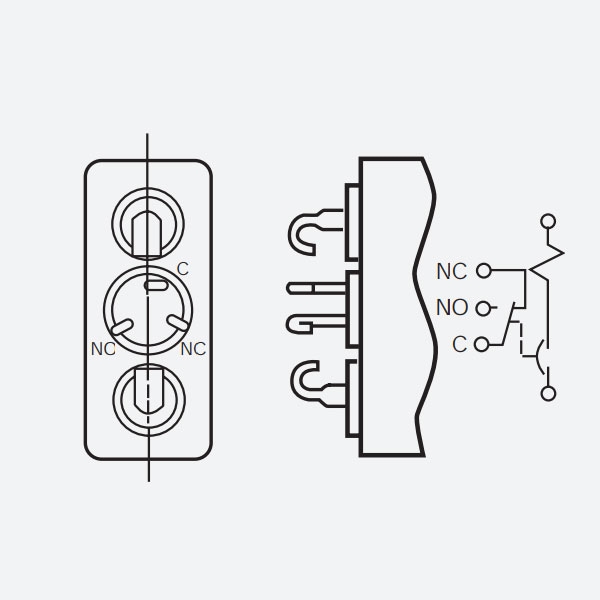

| AUXILIARY SWITCH FUNCTION AND QUANTITY | 1 ALARM |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SINGLE LOCATION |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| SWITCH LOCATION AND POSITION DESIGNATION | INTERNAL AT POLE ONE |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 0.200 MINIMUM AT 200 PCT SINGLE LOCATION AND 1.700 MAXIMUM AT 200 PCT SINGLE LOCATION |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | HERMETICALLY SEALED |
| SWITCH TERMINAL TYPE | TAB, SOLDER LUG |
| SWITCH CURRENT RATING AND TYPE IN AMPS | 0.5 DC |
| SWITCH VOLTAGE RATING AND TYPE IN VOLTS | 50.0 DC |
| SPECIAL FEATURES | FULLY SEALED MAGNETIC CIRCUIT BREAKER; SINGLE POLE UNIT, MOUNTED WITH 0.375 IN. THREADED BUSHING; SERIES WITH AUXILIARY SWITCH WITH CANE HOOK TERMINALS; DC, 50/60HZ, 400HZ LONG TIME DELAY 135 PERCENT TRIP WITH ADDITIONAL INERTIAL DELAY; 10 AMP NOMINAL RATING |
| FREQUENCY IN HERTZ | 50.0 SINGLE LOCATION OR 60.0 SINGLE LOCATION |
| UNPACKAGED UNIT WEIGHT | 1.800 OUNCES |
| THREAD SERIES DESIGNATOR | UNEF |
| TERMINAL TYPE AND QUANTITY | 2 WIRE HOOK |
