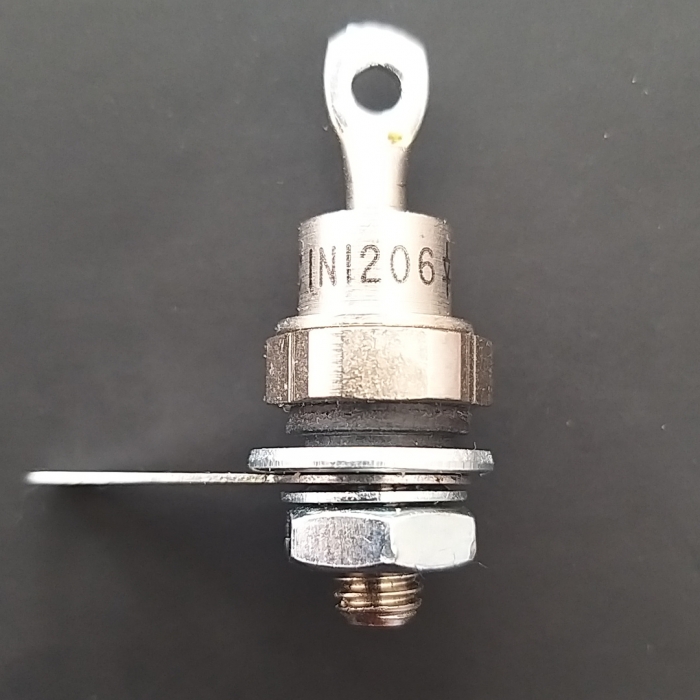

1N1206 5961-00-110-9051 5961001109051 RECTIFIER,SEMICONDUCTOR DEVICE
DİYOT, 12A, 600V 1N1206 NSN: 5961-00-110-9051 5961001109051 (RECTIFIER,SEMICONDUCTOR DEVICE)
|
Mounting Style: |
Stud Mount |
|
Package/Case: |
DO-203AA-2 |
|
Vr - Reverse Voltage: |
600 V |
|
If - Forward Current: |
12 A |
|
Type: |
Standard Recovery Rectifiers |
|
Configuration: |
Single |
|
Vf - Forward Voltage: |
1.2 V |
|
Max Surge Current: |
250 A |
|
Ir - Reverse Current: |
10 uA |
|
Minimum Operating Temperature: |
- 65 C |
|
Maximum Operating Temperature: |
+ 200 C |
