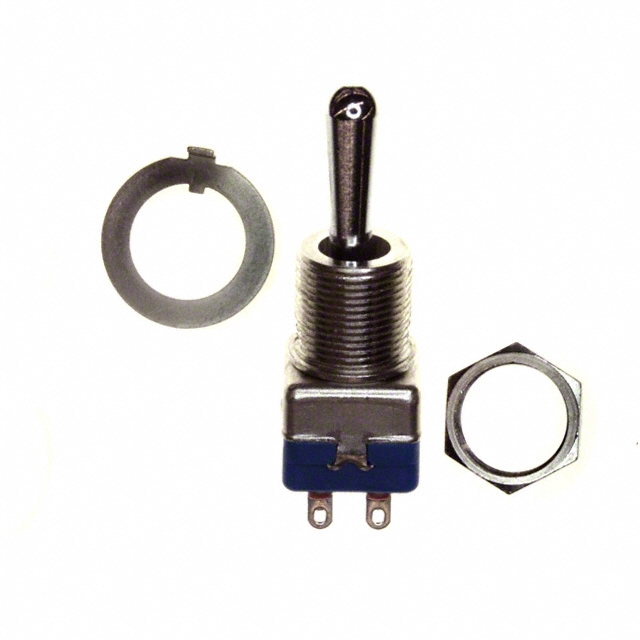

APEM 12149A Toggle Switch NSN: 5930-14-361-1832
Switch
| Category | Switches |
|---|---|
| Series | 12000 |
| Packaging | Bulk |
| Circuit | DPDT |
| Switch Function | On-Off-On |
| Current Rating | 4A (AC/DC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Actuator Type | Standard Round |
| Actuator Length | 17.30mm |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Bushing Thread | 15/32-32 |
| Features | Epoxy Sealed Terminals |
| Actuator Material | Brass, Chrome Plated |
| Electrical Life | 50,000 Cycles |
| Operating Temperature | -40°C ~ 85°C |
